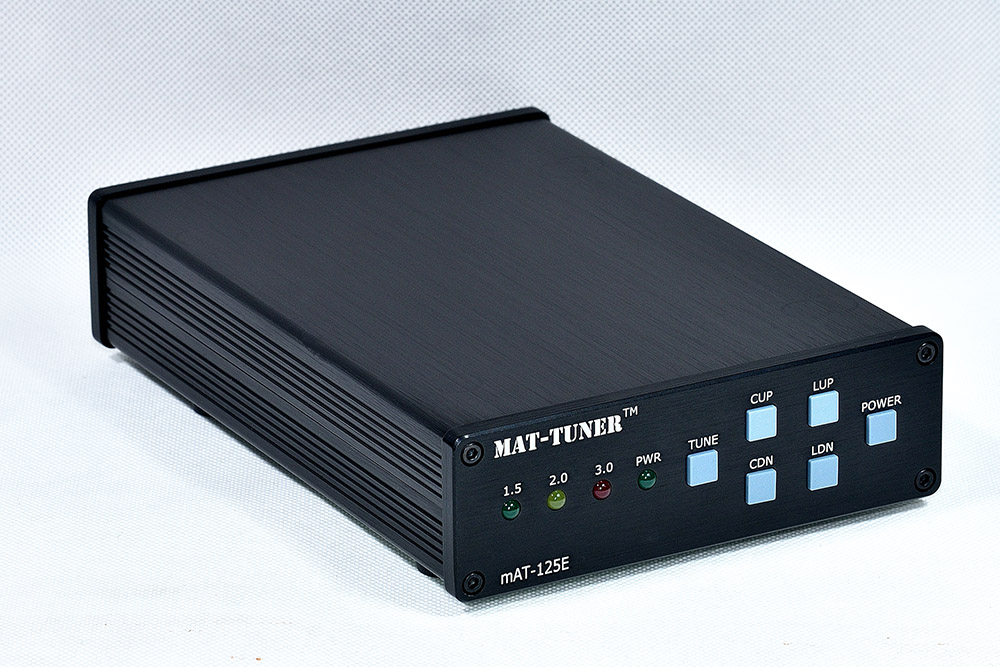

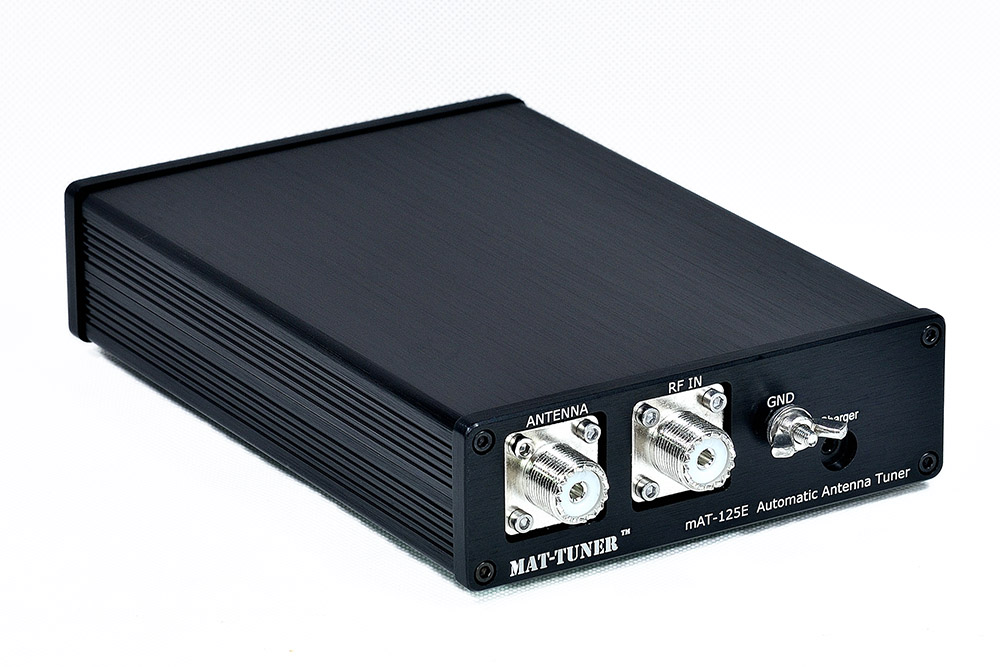

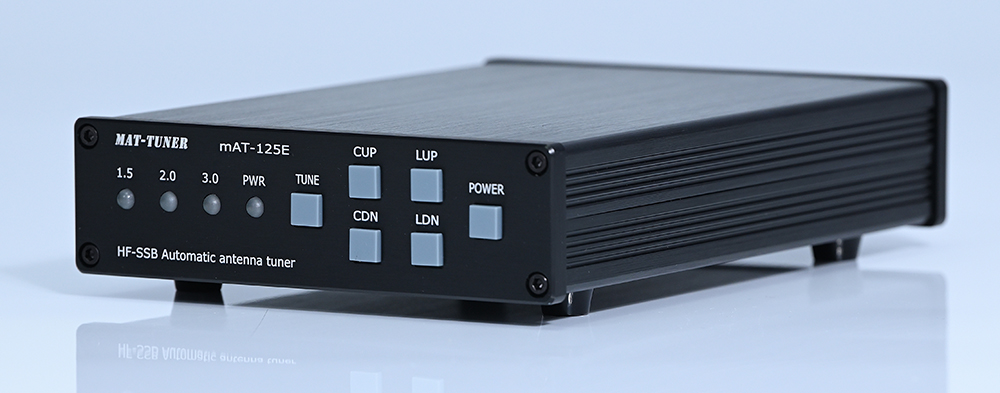

mAT-125E


    mAT-125E是通用型短波自动天调,适用于绝大部分短波机型号。调整电路使用进口元器件,保证工作稳定,性能优良,效率高。天调采用宏发磁保持继电器,内置锂电池,耗电量极小并且不需外接电源即可工作,特别适用于户外移动使用。 天调具有调谐速度快,能自动存储配置的特点。首次调节在8秒以内,如果驻波小于等于1.5,则自动存储数据,下次使用时调节时间缩短到不到0.5秒,并且不怕掉电。可在最小0.5瓦功率下完美调谐。随机附带专用锂电池充电器。适用于长线、双极、GP、八木等常见的各种天线。



The mAT-125E provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

The mAT-125E also features advanced memory tuning, providing 16000 memory locations; when tuning near a previously used frequency it will recall the settings for nearly instant tuning. It learns your favorite frequencies and bands as you use it. You can also start a tuning cycle manually whenever necessary.

The mAT-125E has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-125E uses “Memory Tune” to recall the previous tuning parameters in a fraction of a second.

Two 18650 lithium batteries installed inside tuner to provide power for the tuner. The mAT-125E uses little power while tuning, and essentially zero power when in standby, when the equipment is full of electricity, it can work for a long time.


相关参数

使用机型 绝大部分短波电台
频率 3-54MHz
功率 120瓦(SSB)
工作方式 全自动
匹配阻抗 5-1500欧姆
电源 内置锂电池
尺寸 130x200x40mm
说明书 [mAT-125E操作手册(简体中文版 V1.0 ]

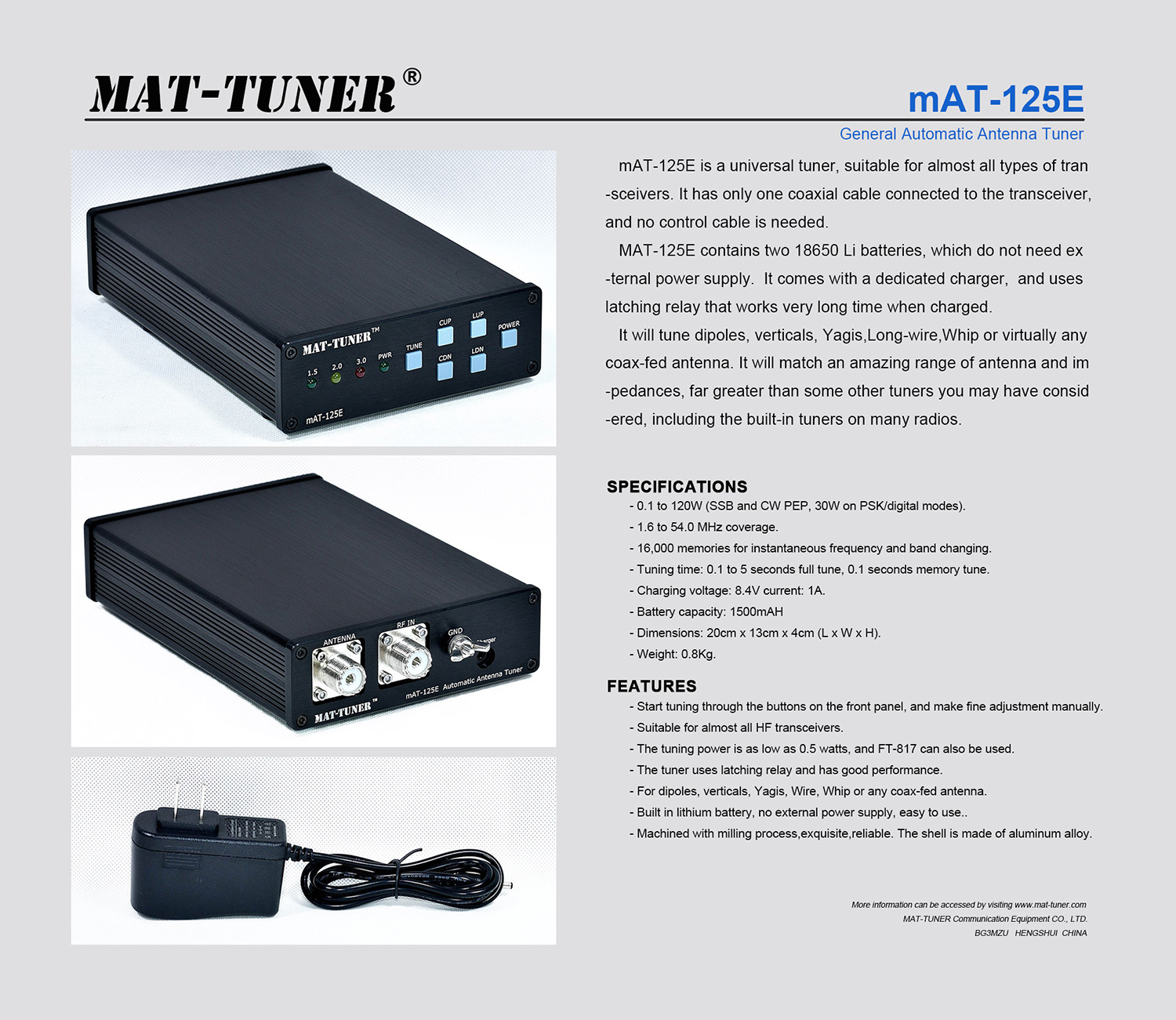

[mAT-125E introduce]
[mAT-125E Operation Manual V1.0 ]
